Cantilever Rack With Adjustable Cantilever Wire Storage Racks Heavy Duty Pipe Storage Racks

5
MOQ
Price needs to be negotiated
Price
Cantilever Rack With Adjustable Cantilever Wire Storage Racks Heavy Duty Pipe Storage Racks
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

Heavy-Duty Cantilever Rack

,

Adjustable Cantilever Racking

,

High Space Utilization Cantilever Shelving
Basic Infomation
Place of Origin: CHINA
Brand Name: JINGHUI
Model Number: XBHJ-962
Payment & Shipping Terms
Packaging Details: Standard export packing
Delivery Time: 5-15 Work days
Payment Terms: T/T
Supply Ability: 550 Tons per Month
Product Description
Cantilever Rack
The cantilever rack is a specialized shelving system constructed by attaching cantilevers to vertical columns. These cantilevers can be either fixed or movable, and due to their branch-like appearance, this system is sometimes referred to as a tree-branch rack.
Structural Design
The cantilever beam-type steel shelf structure consists of columns, beams, cantilever beams, and a base that is securely fixed to the ground. Cantilever arms extend from both sides of the vertical columns, featuring a lightweight design with exceptional load-bearing capacity, making them ideal for storing longer materials.
Key Characteristics
  • Specifically designed for storing pipes, plates, large items, shafts, and irregularly shaped goods
  • Bottom layer directly contacts the ground, enabling storage of heavier items
  • Extendable cantilever design with maximum length up to two meters for enhanced flexibility
  • High storage capacity with minimal floor space utilization
  • Requires consideration of ground load-bearing capacity during installation
Load Capacity Classification
Cantilever racks are categorized into three types based on load capacity:
Type Description
Light-Duty Lower capacity applications
Medium-Duty Standard industrial applications
Heavy-Duty High-capacity industrial storage
Operational Advantages
  • Available in single-sided or double-sided configurations with stable structure and excellent load-bearing capacity
  • High space utilization efficiency with goods accessed via forklifts, overhead cranes, or manual labor
  • Standard height typically under 2 meters, extendable to 5 meters for forklift operations
  • Cantilever length under 2 meters with load capacity per arm typically under 1,000 kg
  • Versatile storage solution for various long and irregular materials

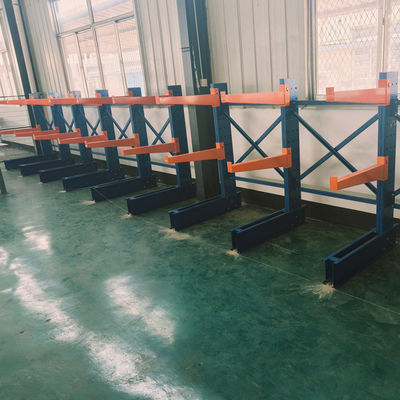

Cantilever Rack With Adjustable Cantilever Wire Storage Racks Heavy Duty Pipe Storage Racks 0

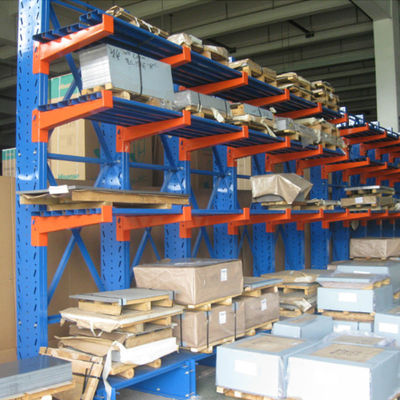

Cantilever Rack With Adjustable Cantilever Wire Storage Racks Heavy Duty Pipe Storage Racks 1

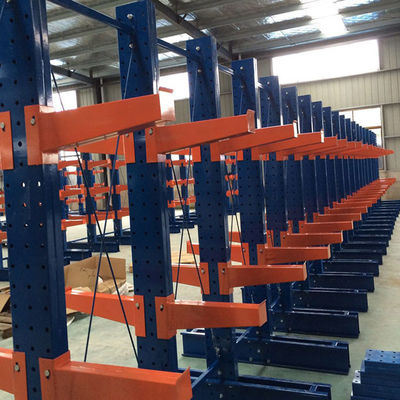

Cantilever Rack With Adjustable Cantilever Wire Storage Racks Heavy Duty Pipe Storage Racks 2
